Introduction to CNC Turning

CNC (Computer Numerical Control) turning is a precision machining process used to manufacture cylindrical parts by removing material from a rotating workpiece. This automated method employs computer-programmed instructions to control cutting tools, ensuring high accuracy, repeatability, and efficiency in producing complex geometries.

How CNC Turning Works

1.Workpiece Rotation: The raw material (e.g., metal, plastic, or wood) is securely clamped in a spindle and rotated at high speeds.

2.Tool Movement: A stationary cutting tool, mounted on a tool turret, moves linearly along multiple axes (typically X and Z) to shape the workpiece.

3.Programmed Operations: The machining process follows a pre-defined CAD/CAM design, executing tasks such as grooving, threading, drilling, and contouring.

Key Components of a CNC Lathe

· Chuck: Holds the workpiece in place.

· Tool Turret: Holds and positions multiple cutting tools for automated tool changes.

· Control Panel: Interfaces with the CNC program to execute machining steps.
· Spindle: Rotates the workpiece.

Advantages of CNC Turning

· Precision: Achieves tight tolerances (±0.001 mm).

· Efficiency: Reduces production time through automation.

· Repeatability: Ideal for high-volume manufacturing.

· Flexibility: Easily adapts to design changes via software updates.

· Complex Geometries: Produces intricate shapes, threads, and contours.

Common Applications

CNC turning is widely used in industries such as:

· Automotive: Engine shafts, bushings, and connectors.

· Aerospace: Turbine components and hydraulic fittings.

· Medical: Implants and surgical instruments.

· Electronics: Sensor housings and connectors.

Materials Suitable for CNC Turning

· Metals: Aluminum, steel, stainless steel, brass, titanium.

· Plastics: Nylon, ABS, PEEK.

· Composites and engineered resins.

Conclusion

CNC turning is a cornerstone of modern manufacturing, combining advanced technology with material science to deliver high-quality, custom-machined parts. Its ability to balance speed, accuracy, and scalability makes it indispensable for industries requiring precision parts.

Our Lathe Machines

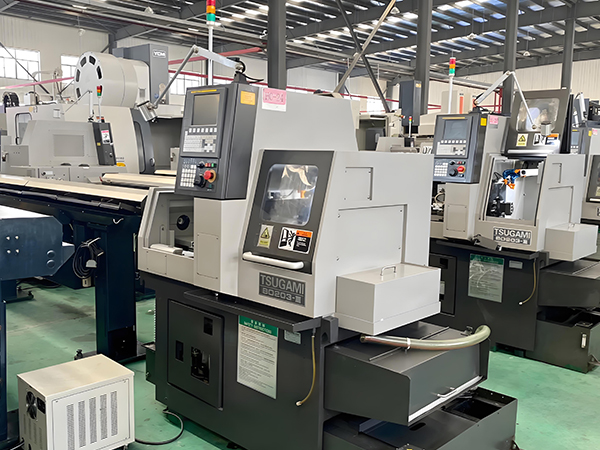

CNC Precision Automatic Lathe-Tsugami BO203-III

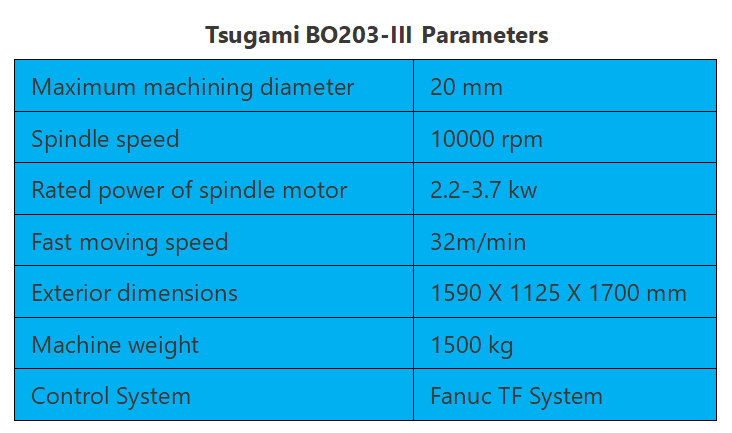

These parameters indicate that the Tsugami BO203-III is suitable for machining small diameter parts, with high machining efficiency and accuracy.

The core advantages of Precision Automatic Lathe

· High precision and consistency
     Multiple processes can be completed in one clamping operation, reducing repeated positioning errors. The dimensional accuracy can reach ± 0.002mm, and the surface roughness Ra is ≤ 0.4 μ m.

· Efficient production

Support continuous feeding of bar materials, high degree of automation, suitable for large-scale production, reducing manual intervention.

· Ability to handle complex structures

Equipped with multiple cutting tools (such as back spindle and auxiliary spindle) and power cutting tools, it can complete turning milling composite machining.

· High material utilization rate

By precisely controlling the material feed, waste generation is reduced, especially suitable for precious metal machining.

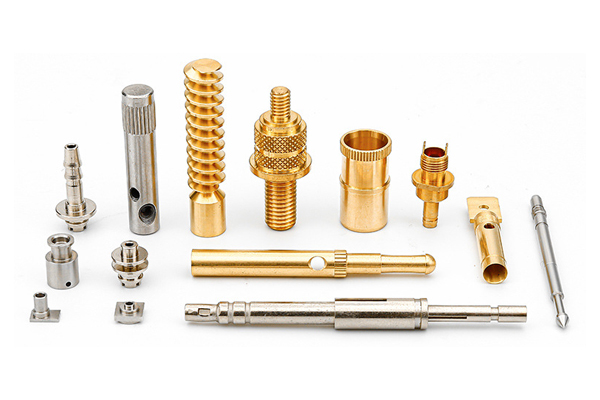

Parts Machined by CNC Automatic Lathe

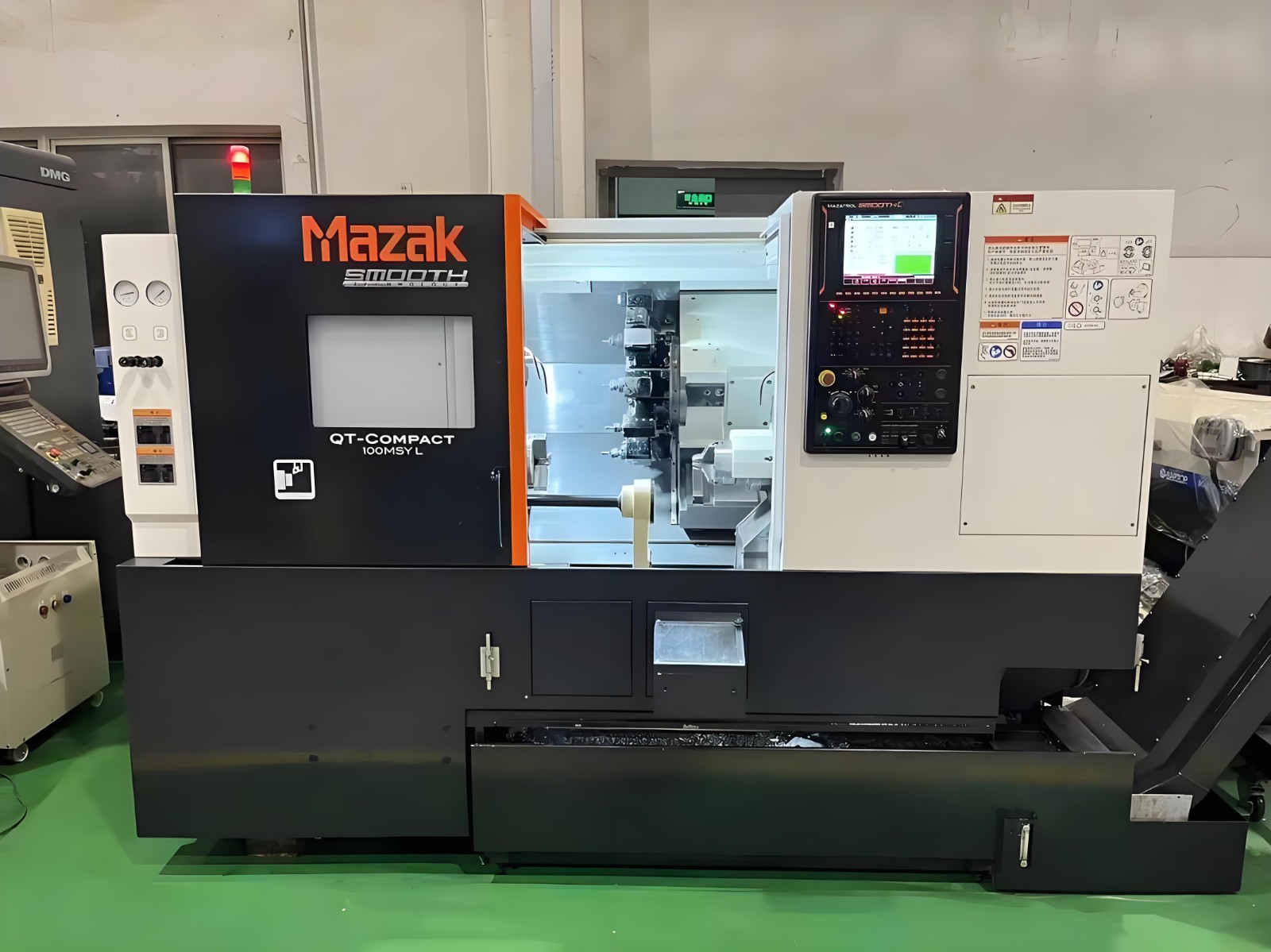

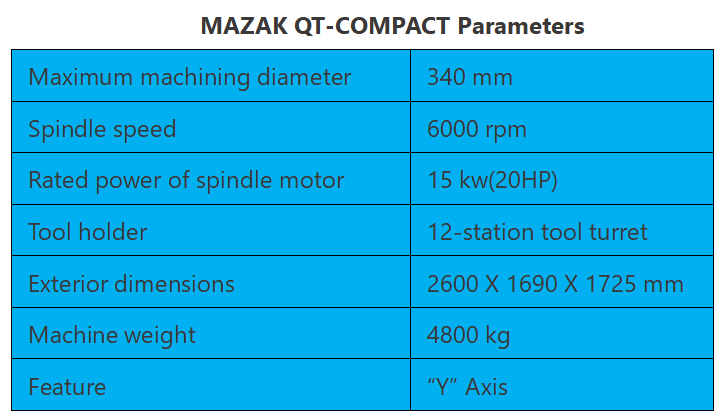

CNC mill-turn Lathe-MAZAK QT-COMPACT 100MSY L

The types of parts machined by QT-COMPACT 100MSY L mainly include the following:

· Turning parts: mainly used for turning machining, suitable for reducing various outer circle sizes, can machine workpieces to specific sizes and obtain smooth machining surfaces.

· Milling parts: This equipment has milling function and is suitable for various milling operations. It can handle complex geometric shapes.

· Drilling and tapping parts: With the equipped drill bit and tapping tool, precise drilling and tapping operations can be carried out, suitable for parts that require high-precision hole machining.

· Complex shaped parts: Due to their high rigidity and strong machining capabilities, they are suitable for machining complex shaped parts, especially for efficient machining in limited spaces.

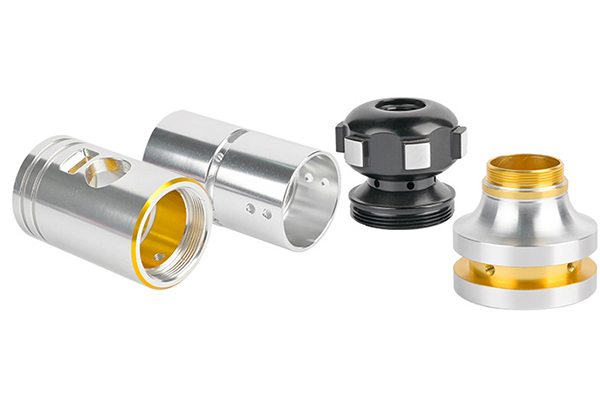

CNC Turning-millling Parts
