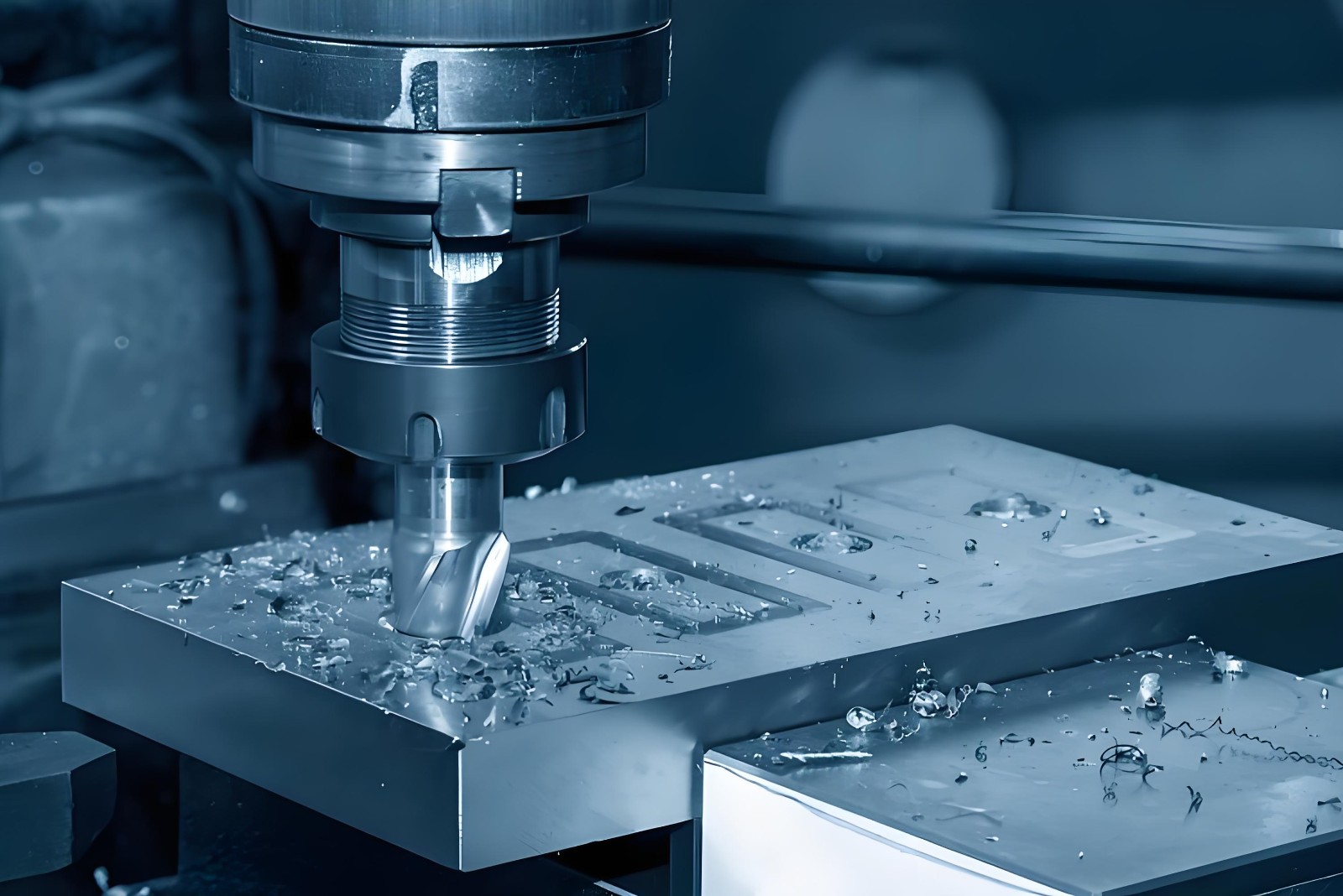

The Power of CNC Milling

In the era of advanced manufacturing, CNC (Computer Numerical Control) Milling stands as a cornerstone technology, transforming raw materials into intricate parts with unmatched accuracy. By combining automated precision with human expertise, CNC milling bridges the gap between complex designs and flawless execution.

Why CNC Milling?
✓ Micron-Level Accuracy: Achieve tolerances as tight as ±0.005mm, ensuring perfect fit for mission-critical parts.
✓ Multi-Axis Mastery: Our 3/4/5-axis machines craft complex geometries – from undercuts to organic contours – in a single setup.
✓ Material Versatility: Machine aerospace-grade titanium (Grade 5), engineering plastics (PEEK, Ultem), and exotic alloys with equal precision.
✓ Scalable Solutions: Prototype 1 unit or produce 10,000+ with identical quality through automated toolpath optimization.
✓ Cost-Efficient Innovation: Reduce material waste by up to 70% compared to traditional methods through intelligent nesting algorithms.

Industry Applications

· Aerospace: Engine parts

· Medical: FDA-compliant surgical tooling, implant prototypes

· Automotive: Lightweight chassis components, EV battery housings

· Electronics: RF waveguide parts, heatsink arrays

Our Technology Advantage

· Smart Machining: Real-time vibration monitoring and adaptive feed control prevent tool deflection

· In-Process Verification: On-machine probing ensures dimensional compliance mid-production

· Surface Finish Options: From Ra 0.8μm mirror polish to as-machined textures for bonding

Horizontal Machining Center and Vertical Machining Center

1. Structural characteristics

Horizontal Machining Center (HMC)

lSpindle direction:Horizontal layout,cutting tools cut along the horizontal direction.

lWorkbench: Usually equipped with a CNC rotary worktable (B-axis), supporting multi-faceted machining (multiple faces can be machined with one clamping).

lTool magazine: Large capacity (up to hundreds of cutting tools), suitable for complex processes.

lChip removal: The chips naturally fall and are smoothly removed, suitable for long-term machining.

lRigid: structurally stable, suitable for heavy cutting and high load machining.

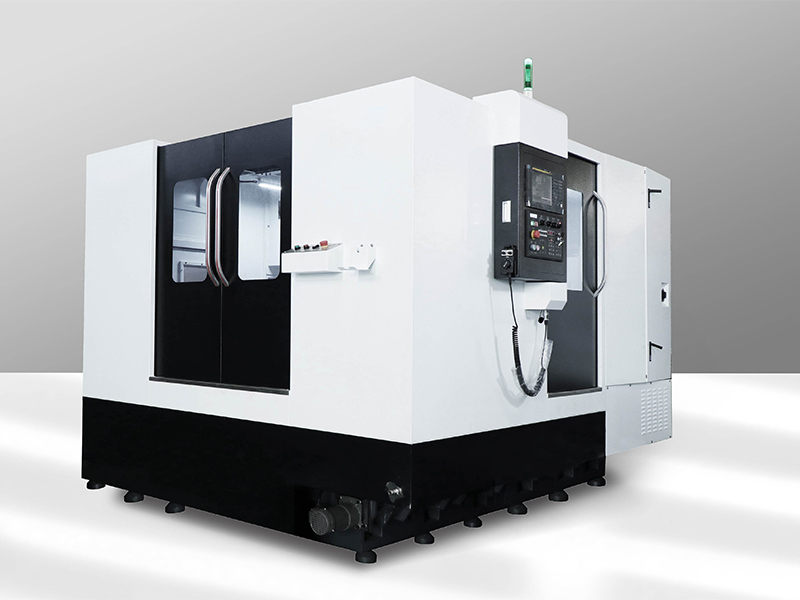

Horizontal Machining Center

Vertical Machining Center (VMC)

lSpindle direction: Vertical layout, cutting tool cuts from top to bottom.

lWorkbench: mostly a cross slide table (X/Y/Z axis), suitable for flat machining.

lTool magazine: The capacity of the tool magazine is relatively small (usually 10-30 cutting tools), and the tool changing speed is fast.

lChip removal: Additional devices (such as flushing or blowing) are required to clean the chips.

lFloor area: Compact structure, suitable for workshops with limited space.

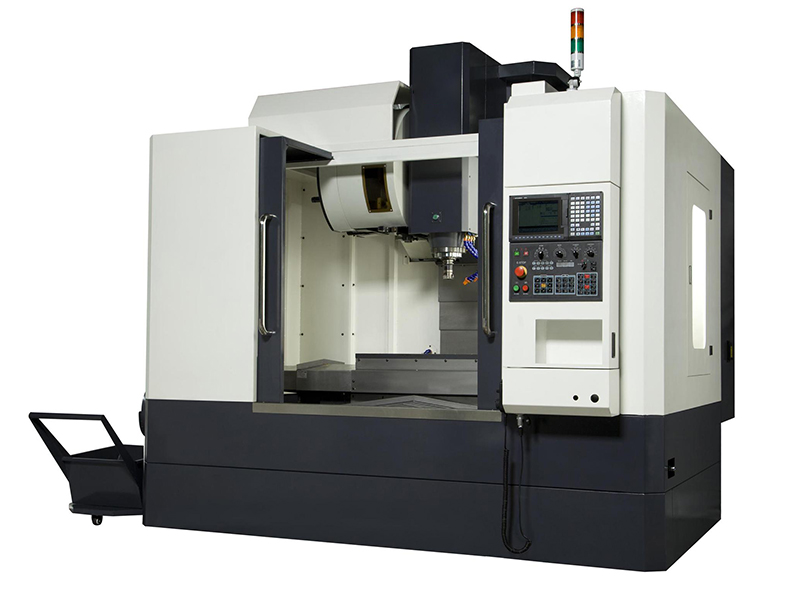

Vertical Machining Center

2. Comparison of machining capabilities

3. Advantages and disadvantages analysis

Horizontal Machining Center

lAdvantage:

Good rigidity, suitable for heavy cutting and high-precision machining;

Complete multi-faceted machining in one clamping to reduce error accumulation;

High degree of automation, suitable for 24-hour continuous production.

lDisadvantages:

Expensive price (about 2-3 times that of a vertical one);

Large footprint, complex operation and maintenance;

High technical requirements for operators.

Vertical Machining Center

lAdvantage:

Low cost, high cost-effectiveness;

Intuitive operation, suitable for beginners;

Flexibly respond to the machining of small and medium-sized parts.

lDisadvantages:

Multi sided machining requires multiple clamping, which affects accuracy;

Weak rigidity, not suitable for heavy cutting;

Difficulty in chip removal may affect machining stability.

4.Typical application scenarios

lHorizontal Machining Center

The automotive industry (engine cylinder block, gearbox housing);

Aerospace (complex structural components);

Heavy machinery (large gearboxes, hydraulic parts).

lVertical Machining Center

Mold manufacturing (injection molds, stamping molds);

Electronics industry (precision parts, housings);

Medical devices (small high-precision parts).
